EndoDrill® – electric-driven rotating needle provides high-quality core biopsies



EndoDrill® is designed to capture core biopsies – a big step toward improved cancer diagnostics

EndoDrill® is the first market-cleared electric-driven biopsy instrument for endoscopy in the US and Europe

EndoDrill® – a groundbreaking, market-cleared
biopsy method for enabling EUS-CNB

EndoDrill® instruments work with precision to take high-quality tissue samples with the aim of improving diagnostics for several types of cancer, such as stomach, pancreatic, liver, lung and bladder cancer. The innovative product technology redefines the growing area of endoscopic ultrasound-guided tissue acquisition for cancer diagnostics. The motorised high-speed rotational EndoDrill® needle enables high-quality core biopsies, overcoming the limitations of today’s standard manual needles.

In 2023, EndoDrill® GI, BiBB’s lead product, received market clearance from the US FDA as the first electric-driven biopsy instrument for endoscopy in the USA. At the beginning of 2024, CE certification according to MDR was obtained in Europe for the entire EndoDrill® product family. The EndoDrill® system has been designed to be easy to use consisting of a sterile disposable EndoDrill® Biopsy Instrument with an associated EndoDrill®Drive System.

An initial clinical pilot study, EDMX01, showed 100% diagnostic accuracy when analysing samples taken with EndoDrill® GI.

EndoDrill® in 40 seconds

Invest 40 seconds and learn the basics about the world’s first FDA-cleared electric biopsy instrument for endoscopic ultrasound.

Innovation at its finest

BiBB is a cancer diagnostics company that develops and manufactures EndoDrill®, a patented product line of electric-driven endoscopic biopsy instruments.

Read more about BiBB instruments

2024-10-02

New Peer-Reviewed Clinical Case Series in the U.S. Shows 100% Diagnostic Accuracy with EndoDrill GI

Read more

EndoDrill® / Technology

Electric-driven rotation is the key to improved biopsies

Unlike conventional manual needle instruments, the FDA-cleared EndoDrill® uses an electric-driven drill cylinder. The design enables deep sampling with high precision. One or more high-quality and solid core biopsies are drilled out – a requirement for complete histological diagnosis, staging and genetic analysis.

EndoDrill® consists of a biopsy instrument with flexible drill cylinder (disposable) and a drive system (reusable) with associated motor unit, foot pedal and drive cable. EndoDrill® has been developed to collect tissue samples of the highest possible quality during ultrasound-guided endoscopic examinations (EUS/EBUS).

How does the EndoDrill® system work?


Click the icons in the image to learn more about the EndoDrill® system.

  • EndoDrill® Motor Unit

    A compact motor unit is connected to the EndoDrill® Drive Cable and controlled via the EndoDrill® Foot Pedal (On/Off). The motor generates rotation that is transferred to the EndoDrill® Drive Cable and on to the needle cylinder of the disposable EndoDrill® Biopsy Instrument.

  • Rotating Needle Cylinder

    EndoDrill’s electric rotating needle cylinder cuts solid core biopsies with high precision for maximum diagnostic accuracy. The inner flexible needle cylinder is protected by an outer sheath.

  • EndoDrill® Drive Cable

    The EndoDrill® Drive Cable transmits rotation from the EndoDrill® Motor Unit to the inner needle cylinder of the EndoDrill® Biopsy Instrument.

  • EndoDrill® Biopsy Instrument (disposable)

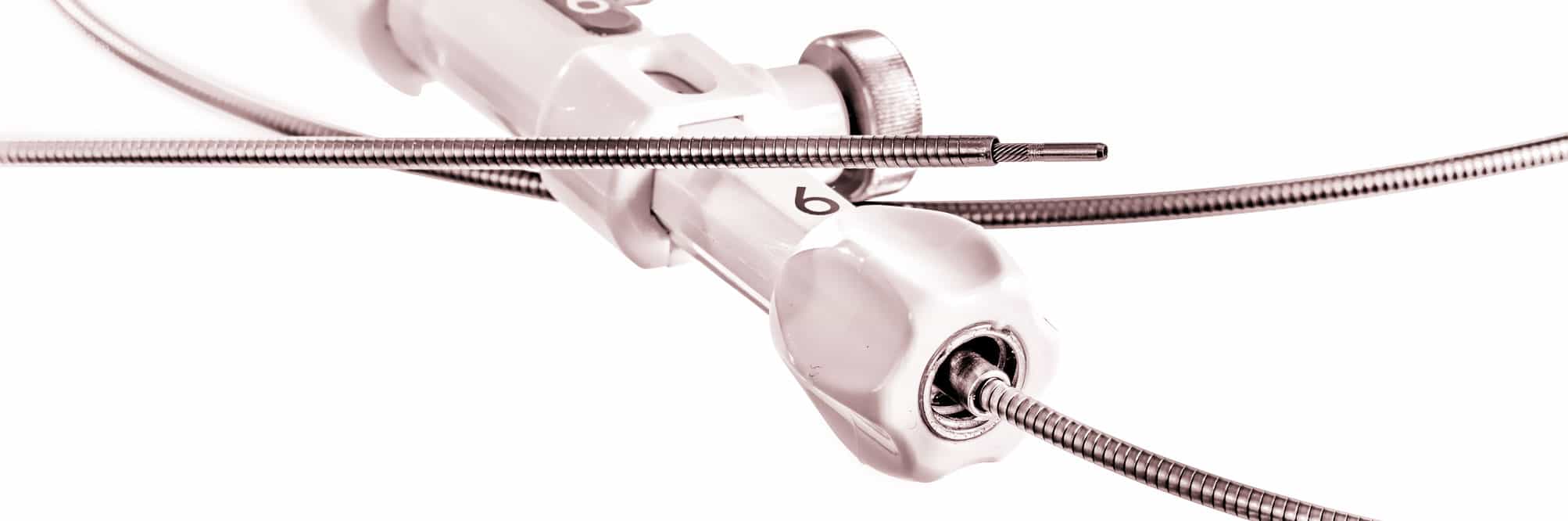

    Intuitive EUS sampling handle, including locking screws, with flexible internal rotating needle cylinder and external protective sheath.

  • EndoDrill® Foot Pedal (reusable)

    The EndoDrill® Foot Pedal is used to control motor rotation (On/Off)

Overcoming the limitations of today’s biopsy needles

Today’s manual EUS/EBUS needle instruments are inserted into the tumour with a repeated stabbing motion, and detached cells and tissue fragments adhere to the tip of the needle. The method requires experienced endoscopists for sampling and skilled pathologists for evaluation. To increase the chances of the fragmented cell material leading to a diagnosis, it is not uncommon to use a variety of supplemental methods, such as having a pathologist in the operating room for Rapid On-Site Evaluation (ROSE), centrifuging the sample (i.e. cellblock), taking multiple samples at different sites, and using different techniques to aspirate the cell sample. EndoDrill® simplifies the entire diagnostic process. Instead of manual sampling with a stabbing motion, samples are taken with the help of electric-driven and user-friendly precision drilling.



The new era of personalised cancer treatment requires more high-quality core biopsies for histological diagnosis and genetic analysis.

With a flexible rotating needle cylinder, the endoscopist cuts out fine core samples without blood contamination, while maintaining tissue architecture under high precision. Sampling with EndoDrill® becomes more reproducible and standardised, i.e. less dependent on the experience and skill of the endoscopist.

Another very important and unique feature is the ultra-flexible design, which enables sampling with a highly angled. This means that high-quality samples can be taken from very hard-to-reach tumours, which is often technically challenging with today’s more rigid biopsy needles.



Ultraflexible needle provides easy access even to difficult anatomical locations.

EndoDrill® versus standard manual needles




EndoDrill®
— Electric rotating core needle biopsy

Current standard of care
— Manual fine needle aspiration/biopsy

Acquired tumor tissue quality

Solid core biopsies with preserved histological architecture resulting in high diagnostic accuarcy*

Blood-tinged material with detached cells and tissue fragments (FNA/FNB) of varying quality
Tissue samples adequate for For both histology and genetic analysis* Varies widely depending e.g. operator experience from only cytological diagnosis to a more complete diagnosis
Time required Potentially shorter procedure with electric rotation, fewer needle passes/stabs, fewer samples required Time consuming with manual, multiple needle passes/stabs; many samples required
Precision High precision with electric-driven high-speed drilling Lower precision with manual repeated, forceful needle sticks
Flexibility of the needle instrument Ultra-flexible instrument – works even with a highly angled endoscope More rigid instrument required to manually penetrate the tissue – works more poorly with a curved endoscope
Need for supplementary techniques High quality biopsies obtained without additionally laboratory techniques/ROSE* Often requires additional resource-intensive techniques, e.g. ROSE and cell block, to increase diagnostic yield

* Swahn et al, 2022, EndoDrill® Model X Biopsy Instrument, The Advent of the Firts EUS Guided 17 Gauge Core Needle Biopsy, Poster session presented at DDW, San Diego.

Using the new EndoDrill® high-quality core needle biopsy (CNB) at the first examination makes it possible to achieve the goal of a treatment-determining diagnosis immediately, while avoiding resource-intensive methods and repeated sampling. Early definitive diagnosis with histological and genetic information enables personalised treatment to be initiated immediately, which can save both lives and healthcare resources.

From EUS tissue sampling with fine-needle aspiration of cells (EUS-FNA) of the 2000s to fine-needle biopsy (EUS-FNB) of tissue fragments of the 2010s, introduction of the electric EndoDrill® is the 2020s’ solution for the sampling of high-quality core needle biopsies (EUS-CNB). It is a long-awaited improvement in diagnostics for many types of cancer, with the potential to eventually establish a new standard of care for endoscopic sampling.

EndoDrill® / Product portfolio

Next generation electric biopsy instruments

BiBB is currently developing and manufacturing three product variants of EndoDrill® that can be used for endoscopic tissue sampling in six of the ten most common forms of cancer. The EndoDrill® products are compatible with endoscopes from the major manufacturers and consist of sterile EndoDrill® Biopsy Instruments connected to EndoDrill®Drive System.

The various biopsy instruments of the product portfolio are adapted to each application’s specific requirements and environment. EndoDrill® GI (gastrointestinal tract) and EndoDrill EBUS (airways/lung) are used with ultrasound endoscopes, while EndoDrill® URO (urinary tract) is used with a conventional cystoscope. The motorised EndoDrill® Drive System is used for all biopsy instruments.

Learn more about the different variants of EndoDrill® by tapping the plus-icons in the image.

  • EndoDrill® GI

    is used for ultrasound-guided (EUS) sampling of the gastrointestinal tract and its associated organs, such as the stomach, pancreas, liver and lymph nodes.

  • EndoDrill® EBUS

    is used in the respiratory tract in endobronchial ultrasound (EBUS) tissue sampling for the diagnosis and staging of lung cancer.

  • EndoDrill® URO

    is used with a standard cystoscope for early tissue sampling of muscle-invasive bladder cancer.

EndoDrill® GI

EndoDrill® GI is used for endoscopic ultrasound (EUS) tissue sampling for all indications in the gastrointestinal tract, such as in the pancreas, stomach, oesophagus, lymph nodes and liver.

  • CE marked according to MDR in February 2024,
  • FDA cleared for the US market in March 2023,
  • Successful pilot study completed in 2022,
  • CE marked under MDD* in 2020,

* expired in August 2022

EndoDrill® GI is the world’s first market-cleared electric-driven EUS-CNB instrument.

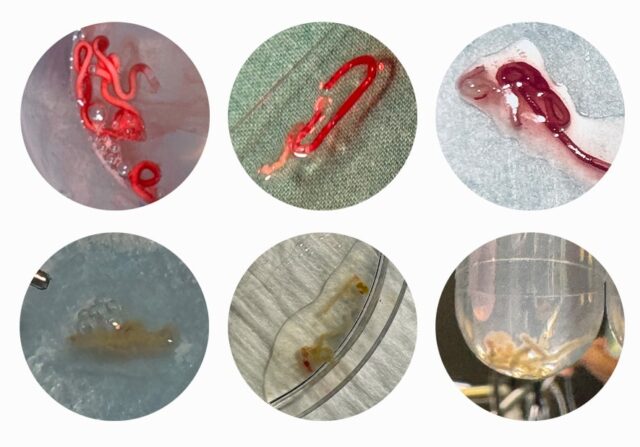

EndoDrill® GI – sampling and result from patient case (#2, EDMX01)

The series of images shows EndoDrill®s demonstrated ability to take treatment-determining tissue
samples of the highest possible quality

Download leaflet for EndoDrill® GI

Instructions for use including safety and performance information relevant to the user or any other person accompanies the product or provided upon request.Please contact BiBBInstruments  at info@bibbinstruments.com.

EndoDrill® EBUS

EndoDrill® EBUS is used in the respiratory tract in endobronchial ultrasound (EBUS) sampling for the diagnosis and staging of lung cancer. As more and more targeted treatments are available, the demands on the quality of diagnostic tissue samples increase and today’s fine-needle instruments do not fully live up to expectations. EndoDrill® EBUS has been designed to meet the new requirements for histopathological and genetic analyses. With the right diagnosis, you can start the right treatment even in severe cases.

EndoDrill® EBUS is used in the respiratory tract in endobronchial ultrasound (EBUS) sampling for the diagnosis and staging of lung cancer.

  • CE marked according to MDR in February 2024,
  • Late-stage development project.

Revolutionary biopsy instrument for lung cancer that enables histopathological and genetic analyses

EndoDrill® URO

EndoDrill® URO is used with a standard cystoscope for sampling of muscle-invasive bladder cancer (MIBC). The purpose of EndoDrill® URO is to take tissue samples of deep-growing bladder tumors for the first time already at the initial cystoscopy. With an earlier diagnosis, today’s invasive surgical procedures (TURB) could be avoided and the treatment of patients with MIBC could be started earlier. An initial pilot study shows that EndoDrill® URO safely can take treatment-based samples earlier in the care chain if MIBC is suspected.

  • CE marked according to MDR in February 2024,
  • Pilot study completed in 2022 and positive data published in June 2023.

Potential paradigm shift for the diagnosis of muscle-invasive bladder cancer (MIBC).

EndoDrill® / Clinical studies

Positive results for EndoDrill®

In preclinical trials and clinical pilot studies, BiBB compared EndoDrill® with market-leading competitors (EUS-FNB). The results show that EndoDrill® takes tissue samples of higher diagnostic quality than equivalent samples taken with EUS-FNB.



Study EDMX01 with EndoDrill® GI

In the autumn of 2020, the first clinical study, EDMX01, was initiated at three Swedish university hospitals for sampling hard-to-diagnose upper gastrointestinal cancer (SEL tumours).

The analysis showed that EndoDrill® safely collected high-quality tissue samples, known as core biopsies, even in comparison with leading fine needle biopsy instruments (EUS-FNB). The study was presented in May 2022 at the DDW congress in San Diego, USA,

The study was presented in May 2022 at the DDW congress in San Diego, USA, and published in the peer reviewed Scandinavian Journal of Gastroenterology in March 2024. BiBB plans to initiate further clinical studies to systematically follow up on how the product works in clinical use.

Dr Fredrik Swahn introduces the world’s first electric EUS biopsy system at the 6th
Nordic EUS meeting in Oslo, 30 November – 1 December 2023.

The ultrasound image clearly shows when EndoDrill® GI is drilled into a submucosal tumour.

The series of images below from case 2 of study EDMX01 shows the difference in tissue sample quality when biopsies are taken from the same tumour with EndoDrill® GI and a leading EUS-FNB instrument. Large and solid tissue samples contain more information and improve diagnostic accuracy.





* Swahn et al, 2022, EndoDrill® Model X Biopsy Instrument, The Advent of the Firts EUS Guided 17 Gauge Core Needle Biopsy, Poster session presented at DDW, San Diego.

Download the poster from DDW

Link to the scientific publication in Scandinavian Journal of Gastroenterology



Initial US case studies

First US clinical cases successfully conducted with EndoDrill® GI in January 2024 at UC Davis Health, Sacramento, California.

Dr Antonio Mendoza Ladd MD, AGAF, FACG, FASGE
Associate Professor of Medicine UC Davis
Medical Director of Endoscopy UC Davis Health

”This device will be a game changer in my opinion.”



Dr Antonio Mendoza Ladd MD, AGAF, FACG, FASGE
Associate Professor of Medicine UC Davis
Medical Director of Endoscopy UC Davis Health

Study EDUX02 with EndoDrill® URO

BiBB has another ongoing study programme for the urinary tract that involves tissue sampling with EndoDrill® in a standard endoscope for muscle-invasive bladder cancer (MIBC), i.e. tumours that have grown through the bladder mucosa and muscle. An initial clinical study on ten patients was completed in 2022, and the results were published in the journal European Urology Open Science in June 2023. The study shows that EndoDrill® URO can safely take treatment-determining samples earlier in the care chain when muscle-invasive bladder tumours are suspected. The research team concludes that there is reason to follow up the pilot study with a randomised efficacy study, which is planned and has received regulatory approval. The project also includes a health economic analysis.

The urologists’ long-term aim with the clinical programme is to demonstrate that early sampling with EndoDrill® can replace today’s standardised sampling as part of what is known as a TURBT procedure. The hypothesis is that the lead time from sampling to treatment start can be significantly reduced, which can improve survival for this serious type of tumour.

Link to the article in European Urology Open Science here

”Histological verification and molecular classification of MIBC are possible for samples collected…”

(Eriksson P, et al., Urodrill – a novel MRI-guided endoscopic biopsy technique to sample and molecularly classify muscle-invasive bladder cancer without fractionating the specimen during transurethral resection, European Urology Open Science, Volume 53, July 2023, Pages 78-82)

The EDUX02 study demonstrates that EndoDrill® URO is the first endoscopic biopsy instrument that safely collects treatment-determining samples when bladder cancer is suspected.

A growing IP portfolio

BiBB’s IP portfolio is one of the company’s most critical assets. All of BiBB’s products have either been granted a patent or have a patent pending. The electric-driven EndoDrill® system is protected by two approved patents in Europe and three pending international patent applications that have entered the national phase. In addition to patents, the EndoDrill® brand is registered in the major markets.



Patent family Patent pending Approved patent Valid until

EndoDrill
(electric, Gen 2)

Patent family 1

  • Europe (EPC), filed in 2018
  • International application (PCT), filed 2019, national entry 2021
  • Divisional application, filed 2023

Patent family 2

  • International application II (PCT), filed 2020,national entry 2022

Patent family 3

  • International application III (PCT), filed in 2021, national entry 2022



Europe I
Europe II
Japan
India
Europe III
(“Intention to Grant”)



2038
2039
2039
2039
2039

EndoDrill (manual, Gen 1)

  USA, Canada 2033

Handle
(manual, Gen 1)

  Europe, China 2035

EndoDrill Core Needle
(manual, Gen 1)

  Sweden 2038
EndoDrill® Trademark USA Europe, Australia, China, India, Japan, Canada
